1993 Chevy S10 Conversion Project

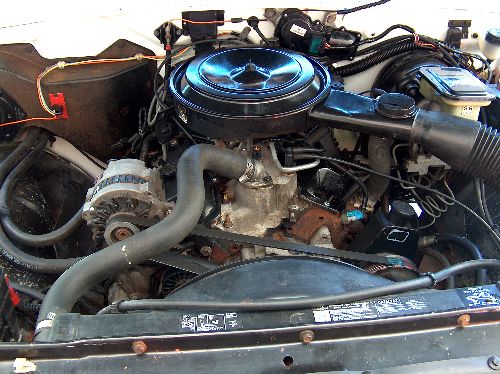

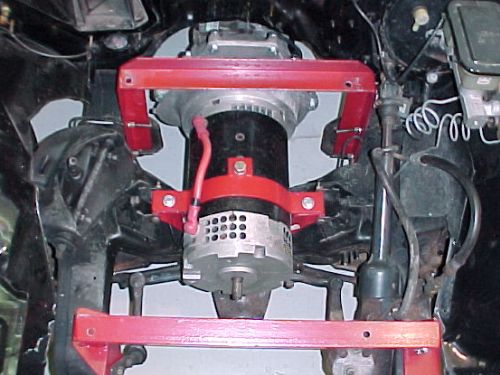

| Before - countless moving parts: | After - One moving part: | |
|
|
|
|
|
|

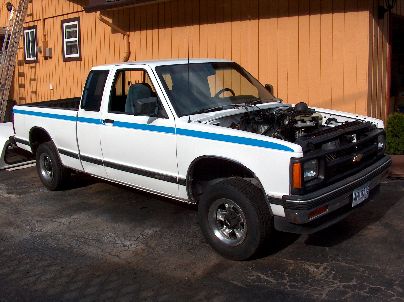

1993 Chevy S10 Extended Cab w/extra rear leaf springs | |
|
|
Front area with control panel & emergency shut off | |
|
|
Ampere and voltage meters | |
|
|
9.1" Advanced DC Motor with adapter mounted to
stock 5 spd transmission |
|
|
|
1000 Amp Zilla Controller | |
|
|

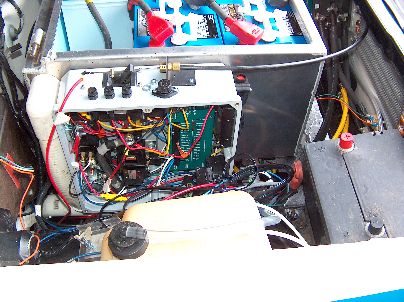

Control Panel with Zilla programmable hairball controller | |
|
|

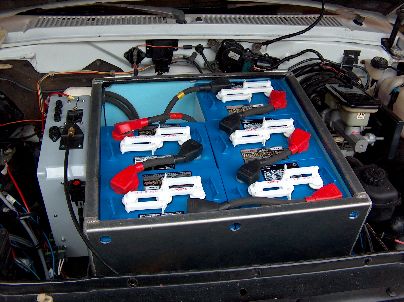

Front Battery Box with lid off 5 deep cycle 6 volt batteries |
|
|
|

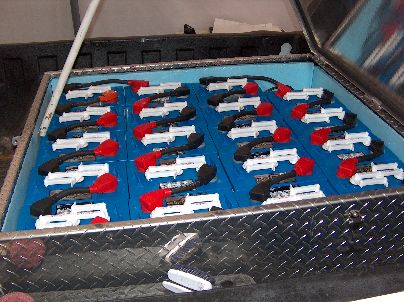

Rear Battery Box with lid off 19 deep cycle 6 volt batteries |
|
|
|

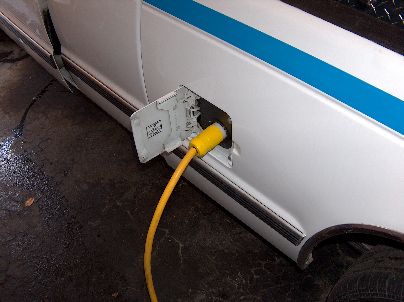

Filler'up - will that be premium 240v or regular 120v ? |
